Engineered Perforated Cable Trays for Control, Instrumentation & Communication Cabling Across India.

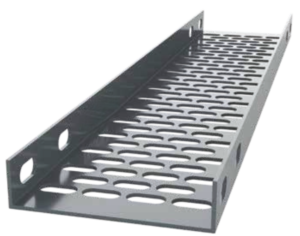

High-Performance Industrial Perforated Cable Trays

Anubhav Techno Solutions Pvt. Ltd. (ATSPL) is a premier perforated cable tray manufacturer in Surat, engineering continuous-support cable management systems for delicate control, instrumentation, signal, and power cables.

Designed to combine continuous structural bottom support with engineered hole patterns, our perforated cable trays allow optimal air circulation while protecting small-diameter and sensitive conductors from mechanical sagging and external damage.

Key Design Advantages:

Optimized Ventilation: Uniform bottom perforations prevent heat buildup without compromising bottom support.
Versatile Tie-Down Points: Perforations double as anchor slots for cable ties, enabling quick, secure cable routing.
Moisture & Fluid Drainage: Prevents liquid collection along outdoor or washdown process lines.

Material Range & Protective Surface Finishes

To support chemical manufacturing, data centers, textile facilities, and commercial infrastructure across Gujarat, ATSPL manufactures perforated cable trays in four distinct material grades:

Galvanized Iron (GI) / Hot-Dip Galvanized (HDG): Processed per IS 2629 / IS 4759 (65–85 micron zinc coating) for marine and outdoor chemical plant durability in Hazira.
Mild Steel (MS) Powder Coated: Epoxy/polyester powder-coated finishes providing color-coded identification and corrosion protection for indoor electrical rooms.
Stainless Steel (SS 304 / SS 316): Food and pharmaceutical-grade fabrications offering extreme chemical resistance for cleanrooms and process plants.
Aluminum Perforated Trays: Lightweight, non-magnetic material for overhead tray runs, telecommunication facilities, and weight-restricted structures.

Precision Fabrication at Sachin GIDC Facility

Manufactured at our facility in Sachin GIDC, Surat, ATSPL utilizes CNC multi-tool punching presses, automated press-brake bending, and precision deburring to ensure completely smooth hole edges that will not tear or strip cable sheathing.

Technical Specifications:

Width Options: 50 mm to 1000 mm.
Side Flange Heights: 25 mm, 50 mm, 75 mm, and 100 mm.
Sheet Thickness: 1.2 mm, 1.6 mm, 2.0 mm, and 2.5 mm.
Perforation Pattern: Standard staggered round holes or slotted slots for flexible tie insertion.

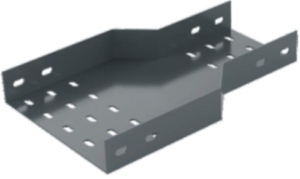

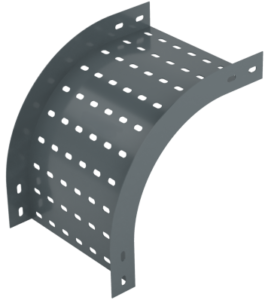

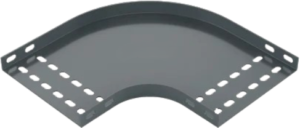

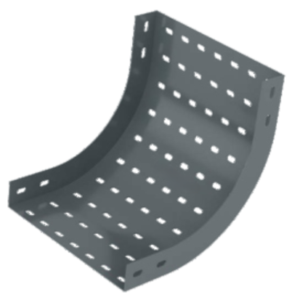

Fittings & Accessories: Perforated tees, reducers, 45°/90° elbows, cross-fittings, snap-on covers, and heavy-duty wall/ceiling brackets.

Industrial Applications

Control & Instrumentation Panels • Data Centers & IT Infrastructure • Chemical Processing • Food & Pharmaceutical Cleanrooms • Textile & Dyeing Mills • Commercial Real Estate.

Why Choose ATSPL for Perforated Cable Tray Systems?

Continuous Bottom Support: Ideal for flexible control cables, fiber optics, and light-gauge wiring that might sag through ladder-style rungs.
Deburred Safety Edges: Precision-finished perforation edges prevent insulation cuts during cable pulling.
Fast Jointing & Erection: Pre-punched side rail connecting holes streamline splice-plate attachment and field installation.
Full Industry Compliance: Engineered in full compliance with IS/IEC manufacturing standards.
Regional Delivery Lead: Located in Sachin GIDC, Surat, providing fast dispatch across Hazira, Pandesara, Dahej, Ankleshwar, and industrial zones statewide.

Frequently Asked Questions

What is the main difference between a perforated cable tray and a ladder cable tray?

Perforated cable trays provide a continuous flat bed with small ventilation holes, making them suitable for small, flexible control, instrumentation, and signal cables. Ladder cable trays feature widely spaced rungs and are designed for heavy high-voltage power cables requiring maximum ventilation and high load capacity.

Are covers available for perforated cable trays?

Yes. ATSPL manufactures solid, ventilated, and peaked snap-on or bolted covers in matching GI, MS, SS, or Aluminum to shield cables from falling debris, dust, and weather exposure.

Can ATSPL customize perforation patterns and tray dimensions?

Yes. We offer custom hole sizes, slotted perforation layouts, non-standard tray widths, side heights, and sheet gauges based on project engineering drawings.

How do perforated cable trays assist in thermal management?

The perforated bottom allows continuous convective airflow around cable bundles, aiding heat dissipation to maintain cable current-carrying efficiency.
